SPECIFICATIONS

AI Functions: Smart Tracking

Alarm Action: FTP Photo,telefon Alarm,Local Alarm

Alexa/Google Assistant: Yes

Aperture: F2.0

App name: mihome

Audio Output: Two Way Audio

Cable Length: 3m

Certification: CE,RoHS,KC,weee

Color: WHITE

Color Night Vision: Yes

Connection: 2.4GHz/Wired Network

Connectivity: WIFI(2.4GHz)

Detection: Person

Dimensions (L x W x D)(mm): 139*128*135mm

Gross Weight: 850g

High Definition: 3.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 30m

Installation: Ceiling,Embedded,Wall Mounted,Stick,Pendant Mount

Internal Storage: None

Lens (mm): 4mm

Lens Quantity: Single Lens

Megapixels: 3 MP

Model Number: IMILAB EC5

Movement Range(Pan): 0°-360°

Movement Range(Tilt): -10°-180°

Net Weight: 688g

Operating Temperature: -30°-60°

Package Size: 18.5*15*14.5

Power Consumption(W): 12W

Power Mode: Mains Electricity

Power Supply: Normal

Power Supply(V): 12V

Rechargeable Battery: None

Rechargeable Battery Capability: Other

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Plastic

Smart home platform: Mi home

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

TF Card: None

Tracking: Human Tracking

Video Compression Format: H.265

Viewing Angle : 360°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: Yes

White Light Brightness: 400Lm SpotLights

Zoom: 4X,4x Zoom

Zoom type: Digital zoom

is_customized: No

Purchase Notice

【Free Event Clips】 New users receive 90 days of free event clips (7-day rolling). Each clip lasts about 10 seconds and is triggered by motion every 3–30 minutes.
【Warranty】 Includes a 2-year warranty. Register the order and product on the official website to receive an additional 1-year extension (total 3 years).
【Global Version】 Global version, suitable for use in multiple countries and regions.
【Adapter】 Please select the correct plug type when purchasing (US plug / EU plug / no adapter).

About This Item

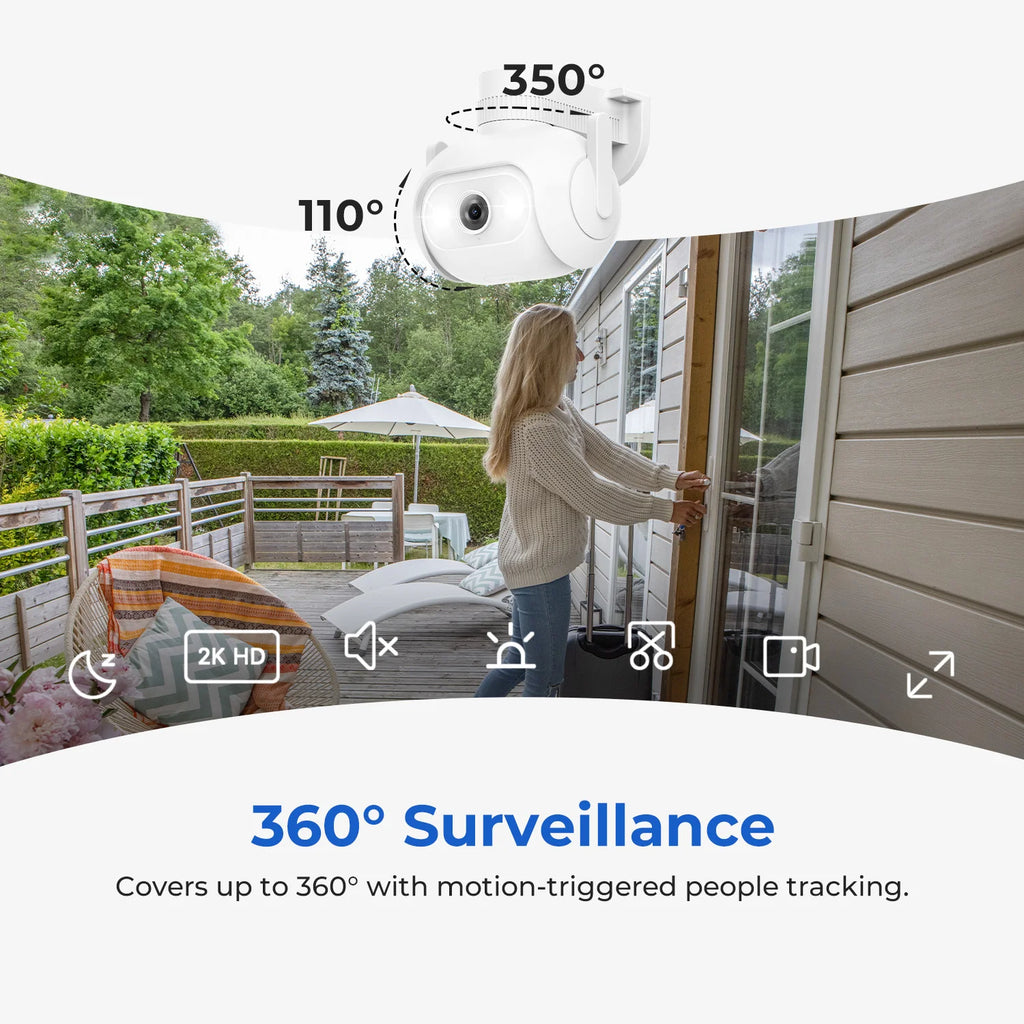

【360° Rotating Coverage】

Secure your yard with a single camera. The EC5 outdoor security camera features a 360° rotatable lens that automatically detects people entering the monitoring area and tracks their movement.

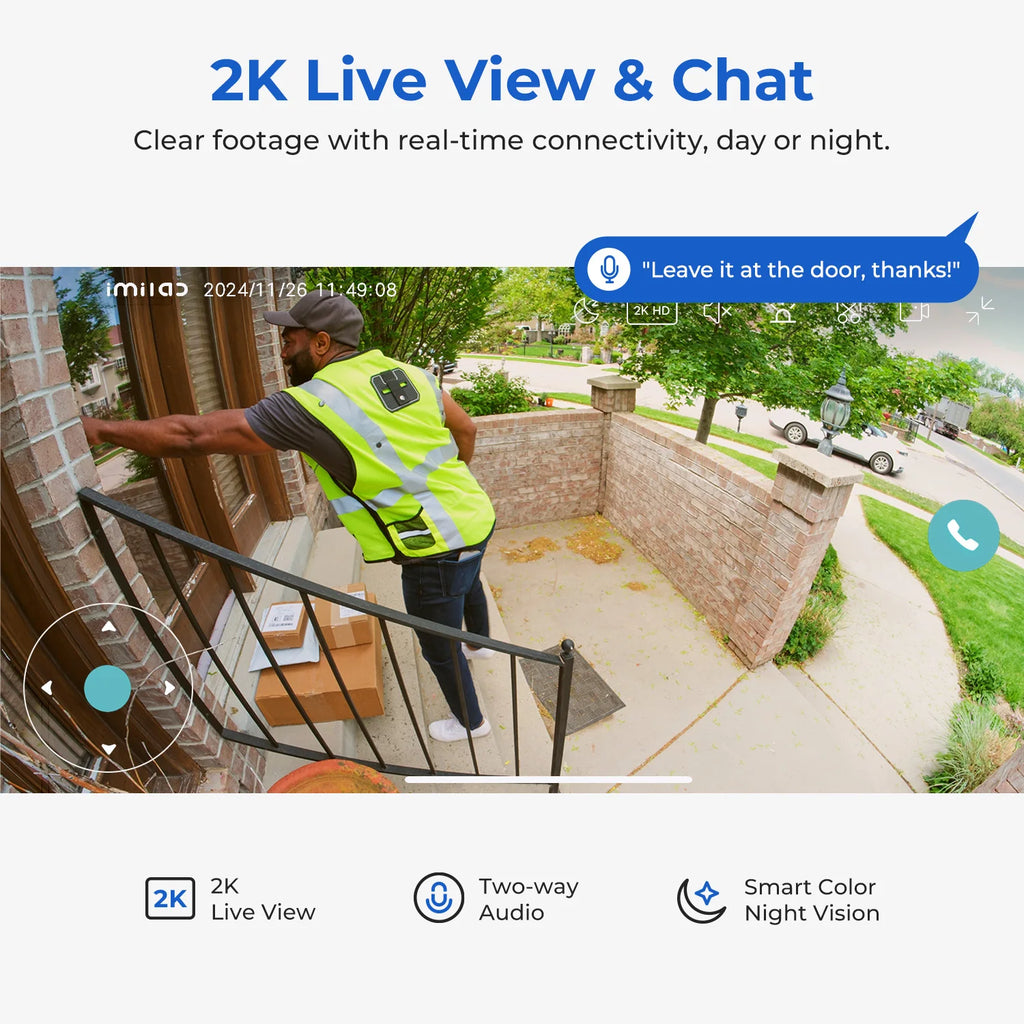

【Full-Color 2K, Day & Night】

Monitor your home and communicate with visitors in real time with 2K resolution and two-way audio. The camera supports full-color night vision at all times or automatically switches to full color when a person is detected.

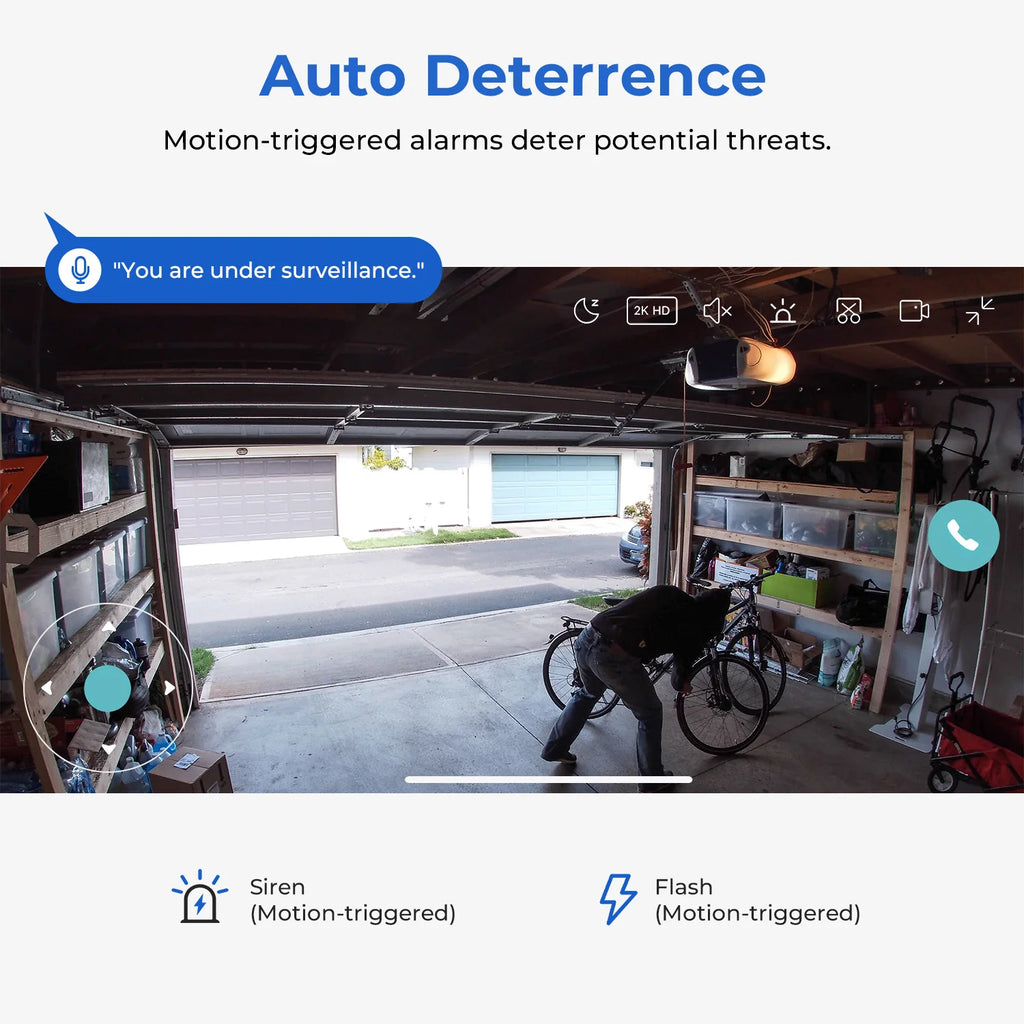

【Auto Deterrence】

Automatically deters potential threats with a built-in siren or flashing light when motion is detected. These features are included with no paid subscription required.

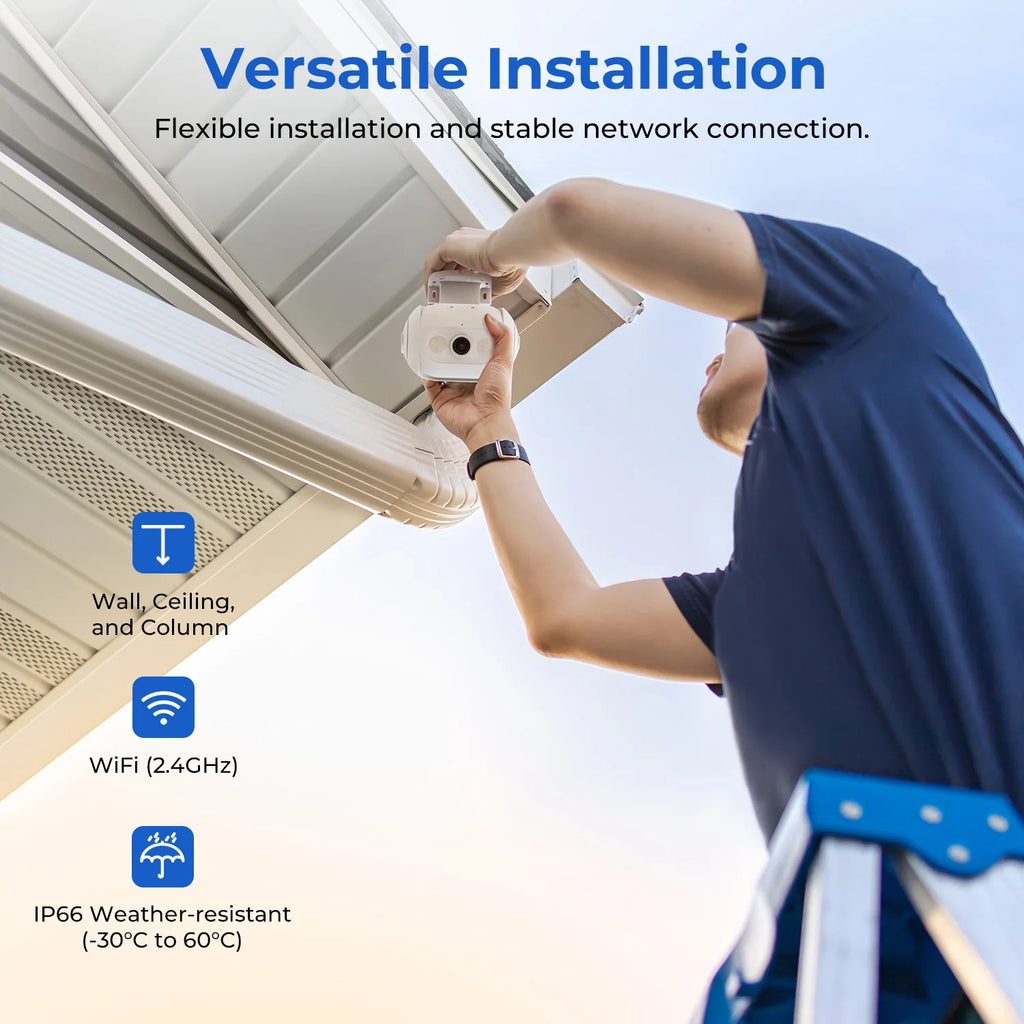

【Easy Installation】

Designed for simple installation on walls, ceilings, or columns. *EC5 supports WiFi connection only.

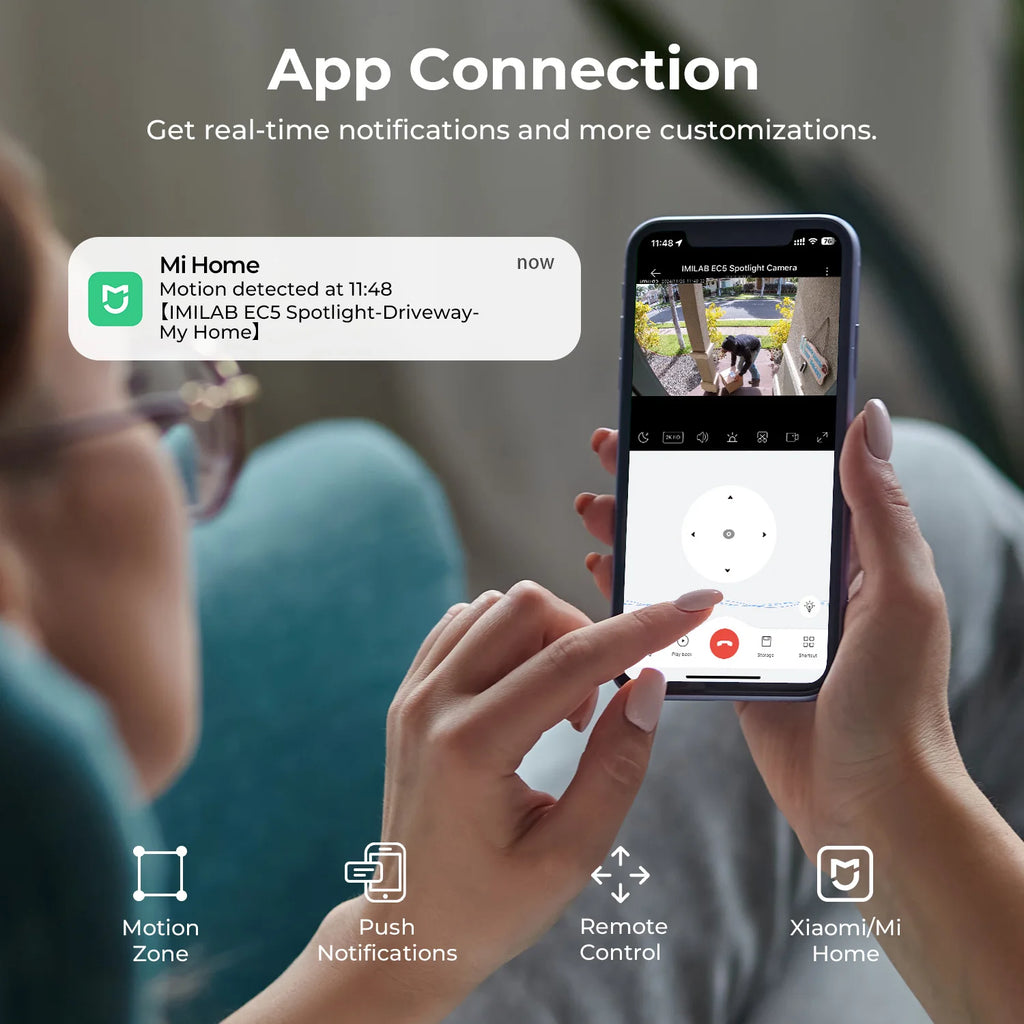

【Remote Control via App】

Receive instant notifications through the Mi Home App. Remotely pan or tilt the lens for closer views, and set custom motion zones to monitor specific areas.

【Local & Cloud Storage Options】

Supports 24/7 local recording via MicroSD card (up to 256GB, not included) with no subscription required. Optional cloud storage is available for motion-triggered recordings. *New users receive 3 months of free cloud storage.
